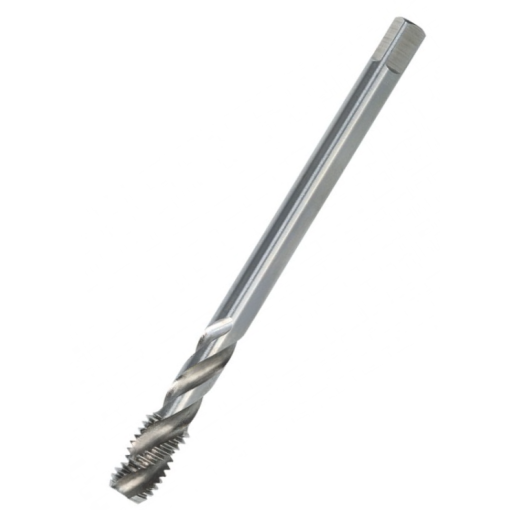

Maschinengewindebohrer DIN 374 Salo

Norm: DIN 374
Form: Form C

Durchmesser (mm)

14,09 € (Netto 11,84 € )

inkl. 19% USt. , zzgl.

Dieser Artikel hat Variationen. Wählen Sie bitte die gewünschte Variation aus.

Verfügbarkeit siehe Auswahl

Artikelnummer: 12701240000-P
Kategorie: MF - metrisch fein
Hersteller: Völkel

Beschreibung

Maschinengewindebohrer DIN 374 Salo

Beschreibung

Gewindeart: metrisches ISO-Gewinde
Norm: DIN 374
Form: Form C
Material: HSSE
Toleranz: ISO2 (6H)
Nutenform: 35°SP
Anwendung: für Sacklöcher
Gewindenorm: DIN 13

Technische Daten

Artikelnummer	Nennmaß D	L1	L2	D2	Durchmesser
39701	M 3x0,35	56	5	2,2	-
39702	M 4x0,35	63	5	2,8	2,1
39703	M 4x0,5	63	5	2,8	2,1
39704	M 5x0,5	70	5	3,5	2,7
39705	M 5x0,75	70	8	3,5	2,7
39706	M 6x0,5	80	5	4,5	3,4
39707	M 6x0,75	80	8	4,5	3,4
39708	M 7x0,75	80	8	5,5	4,3
39709	M 8x0,5	80	8	6,0	4,9
39710	M 8x0,75	80	8	6,0	4,9
39711	M 8x1,0	90	10	6,0	4,9
39712	M 9x0,75	80	10	7,0	5,5
39713	M 9x1,0	90	10	7,0	5,5
39714	M 10x0,75	90	10	7,0	5,5
39715	M 10x1,0	90	10	7,0	5,5
39716	M 10x1,25	100	16	7,0	5,5
39717	M 11x1,0	90	11	8,0	6,2
39718	M 11x1,25	90	14	8,0	6,2
39719	M 12x0,75	100	10	9,0	7,0
39720	M 12x1,0	100	11	9,0	7,0
39721	M 12x1,25	100	15	9,0	7,0
39722	M 12x1,5	100	15	9,0	7,0
39723	M 13x1,0	100	11	11,0	9,0
39724	M 13x1,5	100	15	11,0	9,0
39725	M 14x0,75	100	10	11,0	9,0
39726	M 14x1,0	100	11	11,0	9,0
39727	M 14x1,25	100	15	11,0	9,0
39728	M 14x1,5	100	15	11,0	9,0
39729	M 15x1,0	100	12	12,0	9,0
39730	M 15x1,5	100	15	12,0	9,0
39731	M 16x1,0	100	12	12,0	9,0
39732	M 16x1,25	100	15	12,0	9,0
39733	M 16x1,5	100	15	12,0	9,0
39734	M 18x1,0	110	13	14,0	11,0
39735	M 18x1,25	110	15	14,0	11,0
39736	M 18x1,5	110	17	14,0	11,0
39737	M 18x2,0	125	20	14,0	11,0
39738	M 20x1,0	125	14	16,0	12,0
39739	M 20x1,25	120	17	16,0	12,0
39740	M 20x1,5	125	17	16,0	12,0
39741	M 20x2,0	140	20	16,0	12,0
39742	M 21x1,5	125	17	16,0	12,0
39743	M 22x1,0	125	14	18,0	14,5
39744	M 22x1,25	125	17	18,0	14,5
39745	M 22x1,5	125	17	18,0	14,5
39746	M 22x2,0	140	20	18,0	14,5
39747	M 23x1,5	125	17	18,0	14,5
39748	M 24x1,0	140	15	18,0	14,5
39749	M 24x1,25	140	17	18,0	14,5
39750	M 24x1,5	140	20	18,0	14,5
39751	M 24x2,0	140	20	18,0	14,5
39752	M 25x1,0	140	15	18,0	14,5
39753	M 25x1,5	140	20	18,0	14,5
3975X	M 26x1,0	140	15	18,0	14,5
39754	M 26x1,5	140	20	18,0	14,5
39755	M 26x2,0	140	20	18,0	14,5
39700	M 27x1,0	140	15	20,0	16,0
39756	M 27x1,5	140	20	20,0	16,0
39757	M 27x2,0	140	20	20,0	16,0
39758	M 28x1,0	140	15	20,0	16,0
39759	M 28x1,5	140	20	20,0	16,0
39760	M 28x2,0	140	20	20,0	16,0
39761	M 29x1,5	150	22	22,0	18,0
39762	M 30x1,0	150	17	22,0	18,0
39763	M 30x1,5	150	22	22,0	18,0
39764	M 30x2,0	150	22	22,0	18,0
3976X	M 30x2,5	180	27	22,0	18,0
39765	M 30x3,0	180	30	22,0	18,0
39766	M 32x1,5	150	22	22,0	18,0
39767	M 32x2,0	150	22	22,0	18,0
39792	M 32x3,0	180	30	22,0	18,0
39793	M 33x1,5	160	24	25,0	20,0
39768	M 33x2,0	160	24	25,0	20,0
39769	M 33x3,0	180	30	25,0	20,0
39770	M 34x1,5	170	24	28,0	22,0
39771	M 34x2,0	170	24	28,0	22,0
39772	M 35x1,5	170	24	28,0	22,0
39773	M 36x1,5	170	24	28,0	22,0
39774	M 36x2,0	170	24	28,0	22,0
39775	M 36x3,0	200	30	28,0	22,0
39776	M 38x1,5	170	24	28,0	22,0
39777	M 39x1,5	170	25	32,0	24,0
39778	M 39x2,0	170	25	32,0	24,0
39779	M 39x3,0	200	30	32,0	24,0
39780	M 40x1,5	170	25	32,0	24,0
39781	M 40x2,0	170	25	32,0	24,0
39782	M 40x3,0	200	30	32,0	24,0
39783	M 42x1,5	170	25	32,0	24,0
39784	M 42x2,0	170	25	32,0	24,0
39785	M 42x3,0	200	30	32,0	24,0
39786	M 45x1,5	180	27	36,0	29,0
39787	M 45x2,0	180	27	36,0	29,0
39788	M 45x3,0	200	30	36,0	29,0
39789	M 48x1,5	190	27	36,0	29,0
39790	M 48x2,0	190	27	36,0	29,0
39791	M 48x3,0	225	33	36,0	29,0
39794	M50x1,5	190	27	36,0	29,0
39795	M 50x2,0	190	27	36,0	29,0
39796	M 50x3,0	225	33	36,0	29,0
39797	M 52x1,5	190	27	40,0	32,0
39798	M 52x2,0	190	27	40,0	32,0
39799	M 52x3,0	225	33	40,0	32,0
3979X	M 63x1,5	275	40	50,0	39,0
