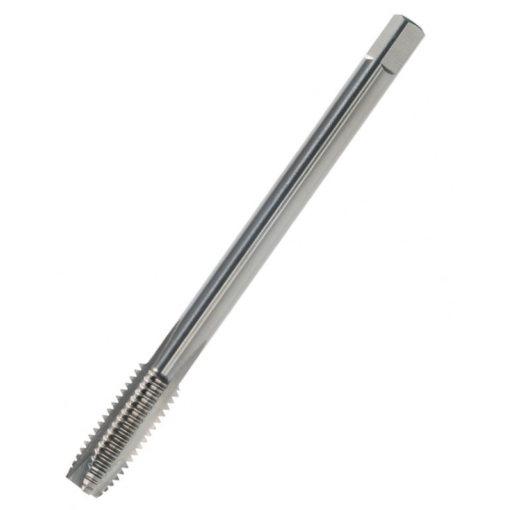

Maschinengewindebohrer DIN 374 Dulo

Norm: DIN 374
Form: Form B

Durchmesser (mm)

12,47 € (Netto 10,48 € )

inkl. 19% USt. , zzgl.

Dieser Artikel hat Variationen. Wählen Sie bitte die gewünschte Variation aus.

Verfügbarkeit siehe Auswahl

Artikelnummer: 12701230000-P
Kategorie: MF - metrisch fein
Hersteller: Völkel

Beschreibung

Maschinengewindebohrer DIN 374 Dulo

Beschreibung

Gewindeart: metrisches ISO-Gewinde
Norm: DIN 374
Form: Form B
Material: HSSE
Toleranz: ISO2 (6H)
Nutenform: gerade genutet
Anwendung: für Durchgangslöcher
Gewindenorm: DIN 13

Technische Daten

Artikelnummer	Nennmaß D	L1	L2	D2	Durchmesser
39501	M 3x0,35	56	9	2,2	-
39502	M 4x0,35	63	10	2,8	2,1
39503	M 4x0,5	63	10	2,8	2,1
39504	M 5x0,5	70	12	3,5	2,7
39505	M 5x0,75	70	12	3,5	2,7
39506	M 6x0,5	80	14	4,5	3,4
39507	M 6x0,75	80	14	4,5	3,4
39508	M 7x0,75	80	14	5,5	4,3
39509	M 8x0,5	80	19	6,0	4,9
39510	M 8x0,75	80	19	6,0	4,9
39511	M 8x1,0	90	22	6,0	4,9
39512	M 9x0,75	80	19	7,0	5,5
39513	M 9x1,0	90	22	7,0	5,5
39514	M 10x0,75	90	20	7,0	5,5
39515	M 10x1,0	90	20	7,0	5,5
39516	M 10x1,25	100	24	7,0	5,5
39517	M 11x1,0	90	20	8,0	6,2
39518	M 11x1,25	90	22	8,0	6,2
39519	M 12x0,75	100	22	9,0	7,0
39520	M 12x1,0	100	22	9,0	7,0
39521	M 12x1,25	100	22	9,0	7,0
39522	M 12x1,5	100	22	9,0	7,0
39523	M 13x1,0	100	22	11,0	9,0
39524	M 13x1,5	100	22	11,0	9,0
39525	M 14x0,75	100	22	11,0	9,0
39526	M 14x1,0	100	22	11,0	9,0
39527	M 14x1,25	100	22	11,0	9,0
39528	M 14x1,5	100	22	11,0	9,0
39529	M 15x1,0	100	22	12,0	9,0
39530	M 15x1,5	100	22	12,0	9,0
39531	M 16x1,0	100	22	12,0	9,0
39532	M 16x1,25	100	22	12,0	9,0
39533	M 16x1,5	100	22	12,0	9,0
39534	M 18x1,0	110	25	14,0	11,0
39535	M 18x1,25	110	25	14,0	11,0
39536	M 18x1,5	110	25	14,0	11,0
39537	M 18x2,0	125	34	14,0	11,0
39538	M 20x1,0	125	25	16,0	12,0
39539	M 20x1,25	125	25	16,0	12,0
39540	M 20x1,5	125	25	16,0	12,0
39541	M 20x2,0	140	34	16,0	12,0
39542	M 21x1,5	125	25	16,0	12,0
39543	M 22x1,0	125	25	18,0	14,5
39544	M 22x1,25	125	25	18,0	14,5
39545	M 22x1,5	125	25	18,0	14,5
39546	M 22x2,0	140	34	18,0	14,5
39547	M 23x1,5	125	25	18,0	14,5
39548	M 24x1,0	140	28	18,0	14,5
39549	M 24x1,25	140	28	18,0	14,5
39550	M 24x1,5	140	28	18,0	14,5
39551	M 24x2,0	140	28	18,0	14,5
39552	M 25x1,0	140	28	18,0	14,5
39553	M 25x1,5	140	28	18,0	14,5
3955X	M 26x1,0	140	28	18,0	14,5
39554	M 26x1,5	140	28	18,0	14,5
39555	M 26x2,0	140	28	18,0	14,5
39500	M 27x1,0	140	28	20,0	16,0
36556	M 27x1,5	140	28	20,0	16,0
39557	M 27x2,0	140	28	20,0	16,0
39558	M 28x1,0	140	28	20,0	16,0
39559	M 28x1,5	140	28	20,0	16,0
39560	M 28x2,0	140	28	20,0	16,0
39561	M 29x1,5	150	28	22,0	18,0
39562	M 30x1,0	150	28	22,0	18,0
39563	M 30x1,5	150	28	22,0	18,0
39564	M 30x2,0	150	28	22,0	18,0
3956X	M 30x2,5	180	45	22,0	18,0
39565	M 30x3,0	180	45	22,0	18,0
39566	M 32x1,5	150	28	22,0	18,0
39567	M 32x2,0	150	28	22,0	18,0
39592	M 32x3,0	180	50	22,0	18,0
39593	M 33x1,5	160	30	25,0	20,0
39568	M 33x2,0	160	30	25,0	20,0
39569	M 33x3,0	180	50	25,0	20,0
39570	M 34x1,5	170	30	28,0	22,0
39571	M 34x2,0	170	30	28,0	22,0
39572	M 35x1,5	170	30	28,0	22,0
39573	M 36x1,5	170	30	28,0	22,0
39574	M 36x2,0	170	30	28,0	22,0
39575	M 36x3,0	200	56	28,0	22,0
39576	M 38x1,5	170	30	28,0	22,0
39577	M 39x1,5	170	30	32,0	24,0
39578	M 39x2,0	170	30	32,0	24,0
39579	M 39x3,0	200	60	32,0	24,0
39580	M 40x1,5	170	30	32,0	24,0
39581	M 40x2,0	170	30	32,0	24,0
39582	M 40x3,0	200	60	32,0	24,0
39583	M 42x1,5	170	30	32,0	24,0
39584	M 42x2,0	170	30	32,0	24,0
39585	M 42x3,0	200	60	32,0	24,0
39586	M 45x1,5	180	32	36,0	29,0
39587	M 45x2,0	180	32	36,0	29,0
39588	M 45x3,0	200	50	36,0	29,0
39589	M 48x1,5	190	32	36,0	29,0
39590	M 48x2,0	190	32	36,0	29,0
39591	M 48x3,0	225	50	36,0	29,0
39594	M 50x1,5	190	32	36,0	29,0
39595	M 50x2,0	190	32	36,0	29,0
39596	M 50x3,0	225	50	36,0	29,0
39597	M 52x1,5	190	32	40,0	32,0
39598	M 52x2,0	190	32	40,0	32,0
39599	M 52x3,0	225	50	40,0	32,0
3959X	M 63x1,5	275	50	50,0	39,0
